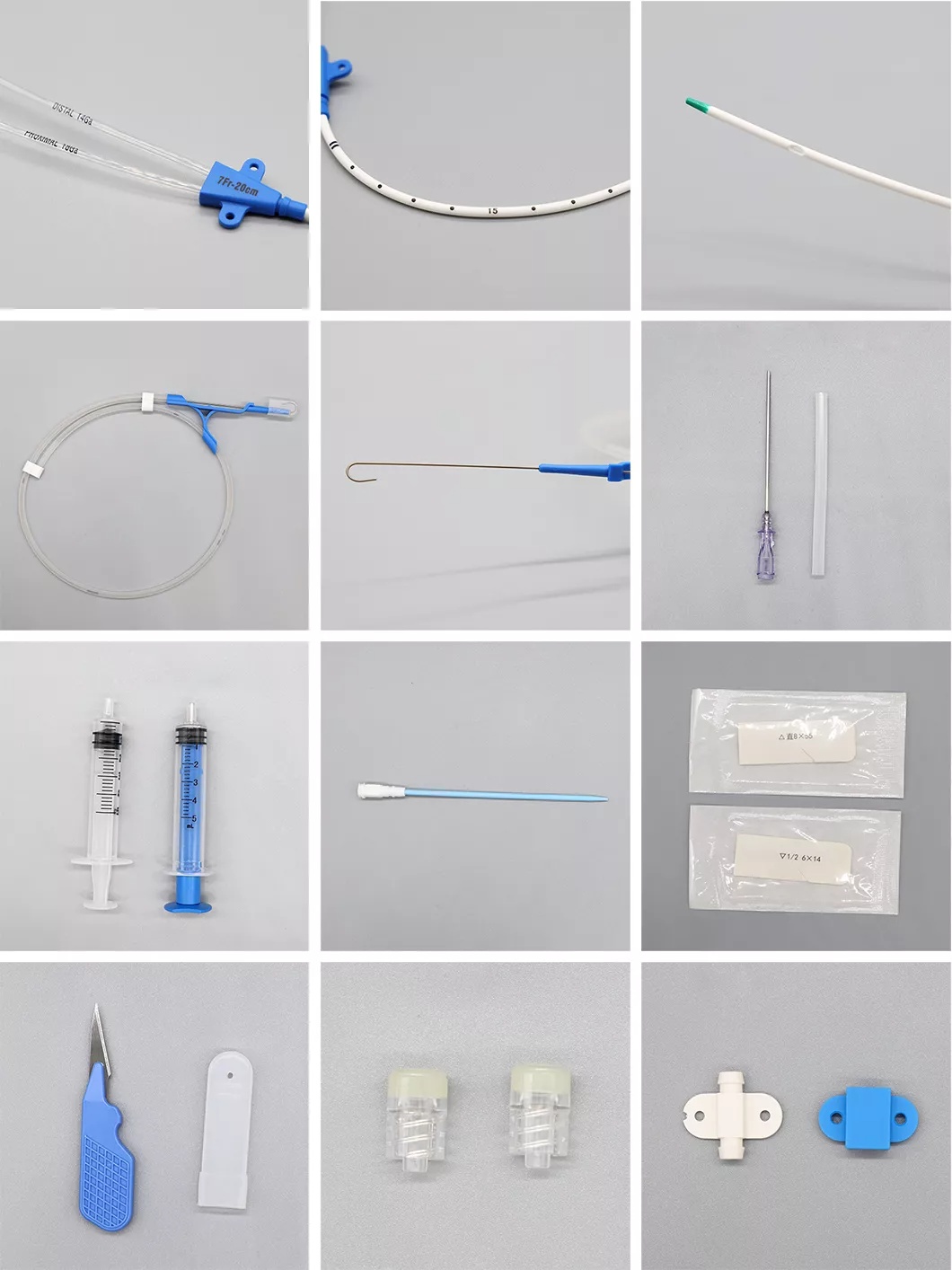

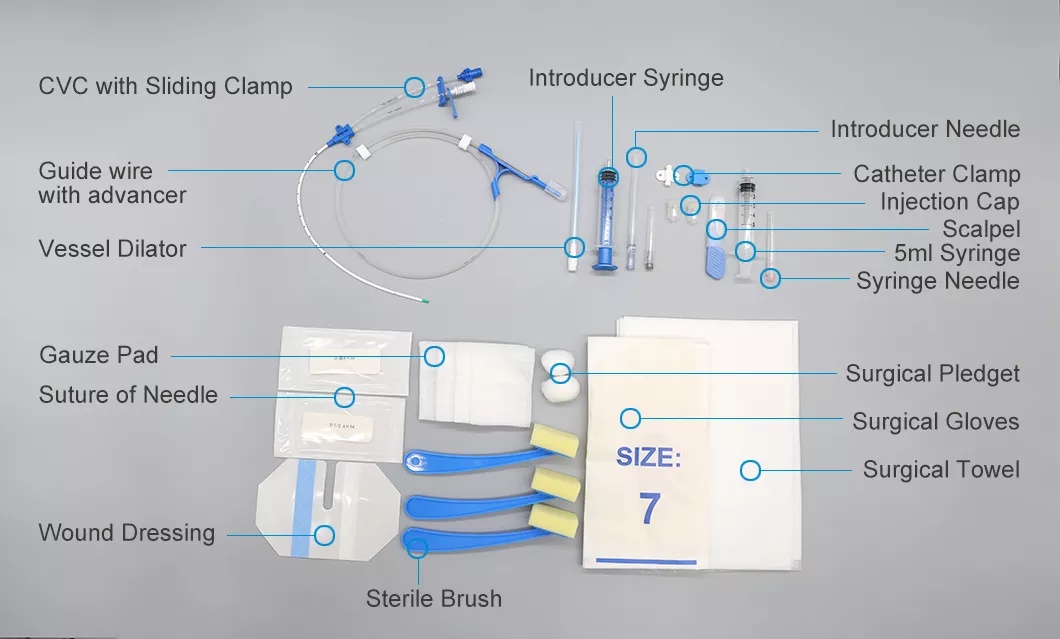

Disposable Medical Double Lumen CVC Kit Central Venous Catheter Kit
Description
Features:
1.The design of Delta wing shape will reduce the friction when it is fixed onto patient’s body. It is safer and more reliable.
2.The distal tip of catheter connects a special soft tip by fusion process. It will avoid the vascular damage when inserting or indwelling the catheter.
3.Use medical grade PU material which is specifically used for human body indwelling. It is with excellent biocompatibility and chemical stability, as well as superior elasticity. The material will soften itself automatically to protect the vascular tissue under body temperature.
4.The design of multi-lumen ensures that the clinician could inject several kinds of pharmaceuticals at the same time. It will avoid drug incompatibility efficaciously. The whole tubing could be observed under X-ray, which will ensure the patients’ safety when indwelling.
| Type | Lumen Size | Catheter Length(cm) |
| Single Lumen | 14Ga | 15cm/16cm/20cm/30cm |
| 16Ga | 15cm/20cm/30cm | |
| 18Ga | 13cm/15cm/16cm/20cm/30cm | |
| 20Ga | 13cm/15cm/16cm/20cm | |
| 22Ga | 10cm/13cm/15cm/16cm/20cm | |
| 24Ga | 5cm/6cm/8cm/10cm/13cm | |
| Double Lumen | 4Fr | 5cm/8cm/13cm |
| 5Fr | 8cm/13cm/15cm/16cm/20cm | |
| 7Fr | 15cm/16cm/20cm/30cm/50cm | |
| 8Fr | 15cm/16cm/20cm | |
| Triple Lumen | 5.5Fr | 8cm/13cm/15cm/16cm/20cm |
| 7Fr | 15cm/16cm | |
| 8.5Fr | 15cm/16cm/20cm | |
| Quad Lumen | 8.5Fr | 10cm/13cm/15cm/16cm/20cm |
